28 0 28 Toroidal Transformer
Additional Windings in description
| Features | Details |
|---|---|
| Power Rating | 280VA Watts |

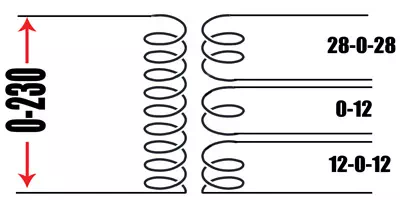

| Primary Winding | 0-230 |
| Main Secondary | 28-0-28 5Amp |
| Alt Secondary | 12-0-12 1.5Amp |
| Inductance Frequency | 48-60Hz |
| Mounting Type | Bracket Mount |
| Effeciency | > 85% |
| Temperature Range | 55-60, Max 70 Deg |
| Price | Rs 1900 |
| Transformer | Dimensions |
|---|---|

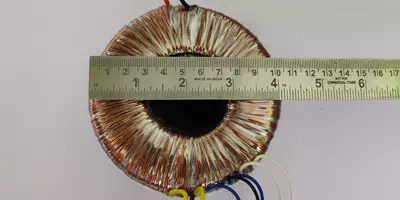

| Diameter | 4 inch |

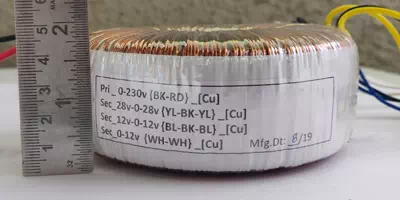

| Height | 1.8 inch |
| Weight | 1,650 Gms |
| Material | Specification |
|---|---|
| Core | Magnetic Alloy Strip |
| Internal Lamination | Fiber Glass |
| Windings | Copper |
