36 0 36 Toroidal Transformer

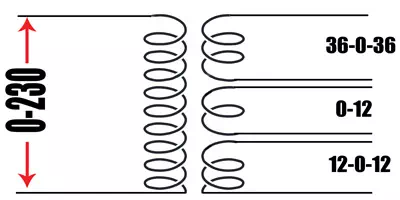

Additional Windings in description
| Features |
Details |
| Power Rating |
360VA Watts |
| Primary Winding |
0-230 |
| Main Secondary |
36-0-36 5Amp |
| Alt Secondary |
12-0-12 1.5Amp |
| Inductance Frequency |
48-60Hz |
| Mounting Type |
Bracket Mount |
| Effeciency |
> 85% |
| Temperature Range |
55-60, Max 70 Deg |
| Price |
Rs 2550 |
| Transformer |
Dimensions |
| Diameter |
4 inch |
| Height |
1.8 inch |
| Weight |
1,950 Gms |
Images of the Transformer with Dimension.
| Material |
Specification |
| Core |
Magnetic Alloy Strip |
| Internal Lamination |
Fiber Glass |
| Windings |
Copper |
